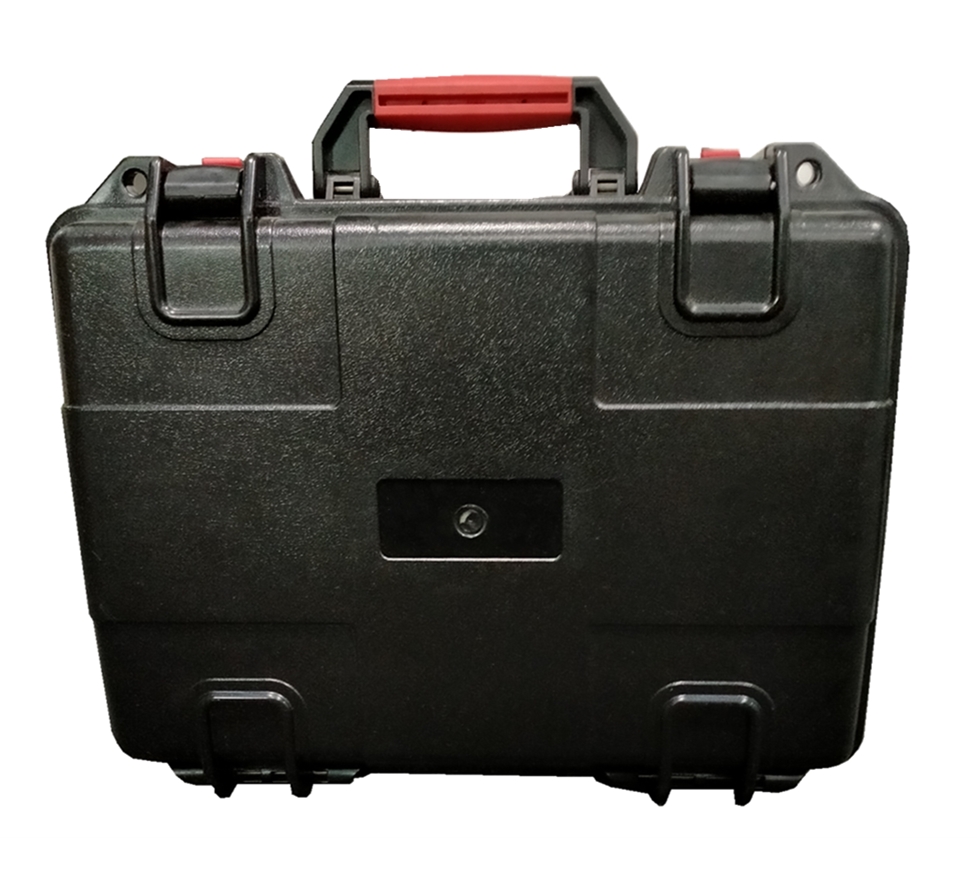

2019 New Drone Jammer Suitcase Portable Anti-drone High Power 3
bands UAV Interceptor with Built-in Antenna
Product Manual: This product is to control the UAV under flight condition and cut
off the connection between UAV and remote controller distantly by
launching high-power electromagnetic waves. It’s able to make the
UAV land in situ or return to the starting point to ensure the
security of low-altitude airspace.
Main Applications:
1) Protection of domestic prohibited areas, such as: prison,
military management area, national strategic resources projects,
nuclear industry facilities, airports, political regions and etc;
2) To prevent the leakage of information on the scene, such as:
major criminal cases on-site, urban management law enforcement
scene, an important security venues, political followers
protection, large-scale performance rehearsal, archaeological
excavation site, large groups event site;
3) To combat the use of unmanned aerial vehicles as a carrier of
illegal activities, such as: transport / drug trafficking,
smuggling, illegal goods or information transmission.
Product Description:
1. Composition: Interception system host, charging power, antenna
and cable;
2. Portable design: light box design, easy operation;
3. Regulatory model: In situ landing or returning to takeoff point;
4. Maximum remote control distance: 1800 meters (covering the
entire low open area);
5. Built-in high-capacity lithium battery: can be used in any
place, 120 minutes endurance;
6. With DC 24V power port, can be connected with car charger in 24V
power;
7. Simple operation: a button switch machine, two modes: landing
and return;
8. Appearance: light box design, effective shielding to target
suspects;
9. Objective: remote control, GPS, GLONASS and 2.4G, 5.8G
communication equipment.
| Product Name: | Portable Drone UAV Jammer Suitcase Anti Civil Drone High Power
Interceptor EST-730B |
| Model No.: | EST-730B |
| Color: | Black |
| Material: | High-strength ABS |
| Antenna: | Built-in Directional Antenna(cover of the device) |
| Control Distance: | ≤1800 meters in open field |
| Frequency Band & Output Power (OEM available): | 2.4G WIFI: 30W; 5.8G WIFI: 10W; GPS L1: 30W; 3 bands in total (OEM available) |
| Maximum Output Power: | 70W |
| Total Power Consumption: | ≤150W |
| Battery: | Built-in 24V10AH High-capacity Lithium Battery, can continuously
work for 2 hours; |
| Power Supply: | AC100-240V or DC24-36V, can be charged by DC24V car emergency power |
| Intercept Way: | forced return / landing / hovering, image transmission interference |
| Operation Method: | put the device on ground, turn on the knob power switch, press all
the three switch buttons(1.5G, 2.4G and 5.8G), then let the cover
of the device face the drone; |
| Dimension: | 415 x 335 x 180mm |
| Weight: | 8.5Kg |
| OEM: | Available |
| Packing: | 1 pcs gift box for one device, neutral packing |
| Working Temperature: | -10℃ ~ +55℃ |
Main Specifications:
1. Case Material: high-strength ABS
2. Antenna: Built-in Directional Antenna(cover of the device);
3. Jamming Distance: ≤ 1800 meters
4. Maximum Power Output: 70W (2.4G WIFI: 30W; 5.8G WIFI: 10W; 1.5G
GPS L1: 30W; 3 bands in total)
5. Total Power Consumption: ≤150W
6. Battery Type: Built-in 24V 10AH high-capacity lithium battery,
can continuously work for 2 hours on a full charge;
7. Power Supply: AC100-240V or DC24-36V, can be charged by DC24V
car emergency power;
8. Operation Method: put the device on ground, turn on the knob
power switch, press all the three switch buttons(1.5G, 2.4G and
5.8G), then let the cover of the device face the drone ;
9. Host Weight: 8.5 kg;
10. Dimension: 415 x 335 x 180mm;
11. Temperature of Working Environment: -10 ℃~ +55 ℃;
12. Temperature of Storage Environment: -20 ℃~ +60 ℃
13. Application Places: prison, border guard, army,
counter-terrorism unit, SWAT, detention center, drug rehabilitation
center, confidential agency, big event, concert, speech, etc.
14. Packing List:
Suitcase Interceptor Host 1pc
Antenna and its accessories 1set(Optional)
Charger 1pc
