11 bands portable suitcase type 0-60m adjustable 60W high power
cell phone 2G 3G 4G & WiFi & GPS & walkie-talkie & remote control
signal jammer with built-in battery(support 3 power supply modes)

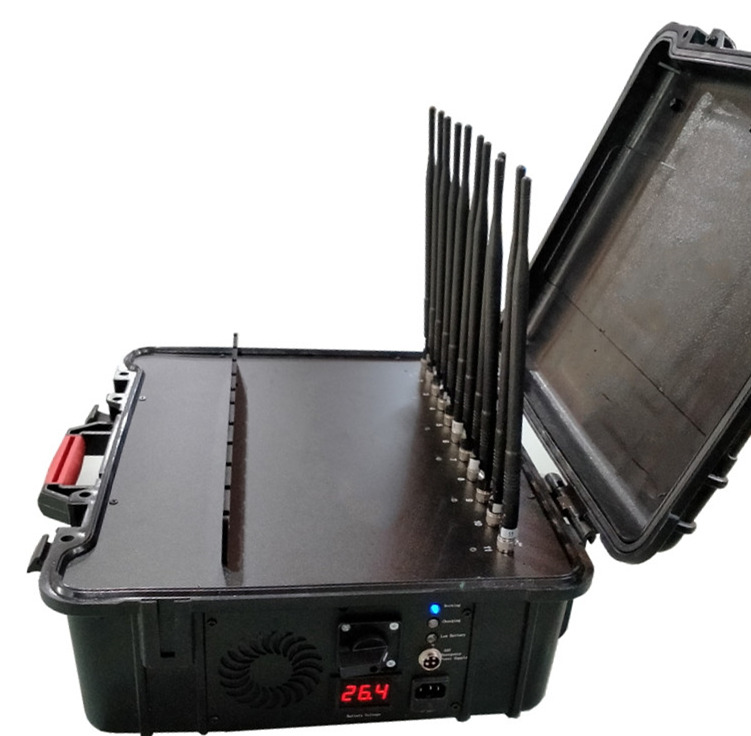

This custom 11-band portable bi-power use suitcase type RF signal
jammer EST-805B11 can effectively block the mobile phone signals
including 2G GSM / CDMA / DCS / PHS, 3G, 4G signals, and Wi-Fi /
Bluetooth, GPS / GNSS, walkie-talkie, remote control signals, etc.
within radius 0-60 meters (adjustable with power adjustment knobs).
When it finds the signal, it will directly block it.
Frequency Bands(can be customized):
1. GSM / CDMA: 850-960MHz (38dbm/6W)
2. DCS / PCS: 1805-1990MHz (37dbm/5W)
3. 3G: 2110-2170MHz (38dbm/6W)
4. 4G LTE: 725-770MHz (US standard) Or 790-826MHz (EU standard)
(37dbm/5W)
5. 4G Wimax: 2300-2400MHz (US standard) Or 2620-2690MHz (EU
standard) (37dbm/5W)
6. 2.4G WiFi / Bluetooth: 2400-2500MHz (37dbm/5W)
7. 5.2G WiFi: 5100-5500MHz (35dbm/3W)
8. 5.8G WiFi: 5500-5900MHz (35dbm/3W)
9. GPS L1 / Galieo L1 / Glonass L1: 1520-1670MHz (37dbm/5W)
10. VHF / LoJack / XM radio: 135-175MHz (39dbm/8W)
11. UHF / RC433: 400-470MHz (39dbm/8W)
1. Parameters
| Product Name: | 11 Bands Portable High Power Cell Phone 2G 3G 4G & WiFi &
Walkie-Talkie & Remote Control Signal Jammer |
| Model No.: | EST-805B11 |
| Color: | Black |
| MOQ: | 1 piece |
| Antenna: | 11pcs omnidirectional antennas |
| Jamming Radius: | 0-60m adjustable (@-75dBm, still depends on the signal strength in
given area) |
| Jamming Objects: | Europe / Middle East / Africa 2G/3G/4G mobile & WiFi / Bluetooth
network, LoJack, walkie-talkie, remote control.... |
| Feature: | Portable explosion-proof suitcase, built-in battery, excellent
cooling systems, real-time voltage display, low battery alarm,
military quality |
| Total Output Power: | ≤ 60W (adjustable with power adjustment knob) |
| Power Supply: | 100-240V AC adapter / 24V 10AH built-in lithium battery / DC24V
external power(emergency power supply) |
| Battery Type: | Built-in DC 24V 20AH high-capacity lithium battery, can
continuously work for 1.5-2 hours on a full charge |
| Dimension: | 517*433*200mm |
| Full Set Weight: | 16kg |
| Package Weight(N.W.): | 18kg |
| Working Temperature: | -40℃ ~ +55℃ |
| Relative Humility: | ≤90%(RH) |
| Air Pressure: | 86~106kPa |
2. Features
*Portable suitcase compact design, explosion-proof, convenient to
carry and use.
*Independent dual power supply system(One-key switch between AC
power supply & battery power supply).
*Four channel switch(4C switch) to control with OFF/Charging/AC
220V Power Supply/DC 24V Battery Power Supply.
*With power adjustable button, can switch on/off of each channel
separately.
*Low battery alarm LED screen with sound and jumping to help get
battery using status.
*Low noise, good cooling system with 5 high power cooling fans and
big aluminum heat sink inside the box.
*High Gain antenna, power adjustable button to suit for using
anywhere.
*Import original IC, SMT technology.
*With antenna fixed base to avoid damage during shipping and using.
*Effectively blocks GPS satellite navigation, location tracking,
LoJack signals, to protect your whereabouts of privacy and
confidential information.
*Effectively blocks CDMA / GSM / DCS / PHS / 3G / 4G and other
mobile phone signals.
*Can block 2.4G WIFI / 5.8G WIFI and wireless video transmission
signals.
3. Application Place
*Conference room, confidential meeting, action conference, mobile
command center, close protection, VIP protection, convoy, hostage
negotiation, law enforcement agency, counter-terrorism unit, SWAT,
bank, church, mosque, law court, cinema, theater, hospital, school,
library, concert hall, training center, car, train, bus, etc.
*Whenever information security and high confidentiality is needed,
to prevent information leakage at sensitive places where using
mobile phones or other radio communication devices is prohibited
such as government, military, finance, security, police and command
center.
