Optional IoT Smart Management Software Control EST-502K16 Customized 16 Bands Cell Phone 2G 3G 4G 5G WIFI Signal Prison Use Jammer

1. Product Specification

* available TX frequency which can be adjusted and used in this 16 antenna jammer

(adjustable per customer request)

CH1: Integrated Digital Enhanced Network (iDEN) / Global System for Mobile (GSM 900): 850-960 MHz

CH2: : Satellite Phone System (SPS): 1525-1665MHz

CH3: Global System for Mobile (GSM 1800): 1805-1880 MHz

CH4: 3G Code Division Multiple Access (3G CDMA): (2110-2170 MHz)

CH5: 4G Long Term Evolution (4G LTE FDD): (720-810 MHz)

CH6: 4G Long Term Evolution (4G LTE -TDD):(1880-1930)MHz

CH7: 4G Long Term Evolution (4G LTE TDD): (2300-2400 MHz)

CH8: 4G Long Term Evolution (4G LTE - TDD): (2496 - 2620 MHz)

CH9: 4G Long Term Evolution (4G LTE - TDD): (2620 - 2690 MHz)

CH10: 5G Long Term Evolution (5G LTE - TDD): (3400 - 3600 MHz)

CH11: 5G Long Term Evolution (5G LTE - TDD): (3600 - 3800 MHz)

CH12: 5G Long Term Evolution (5G LTE- TDD): (3800-4000 MHz)

CH13: 5G Long Term Evolution (5G LTE- TDD): (4000-4200 MHz)

CH14: Wireless Fidelity / Wireless Local Area Network (WiFi / WLAN): (2400-2500MHz)

CH15: Wireless Fidelity / Wireless Local Area Network (WiFi / WLAN):(5100-5500 MHz)

CH16: Wireless Fidelity / Wireless Local Area Network (WiFi / WLAN):(5500-5900 MHz)

OEM is available for the frequency bands.

2. Application

▲ Prison / Jail, government, military, prison, public security, command system;
▲ Gas stations, gas stations, oil and gas fields, oil and gas reservoirs;
▲ Various conference rooms, auditoriums, courts, libraries, examination rooms, schools, cinemas, opera houses and other places where mobile communication equipment is prohibited.

3. Features

*Effectively shielding CDMA / GSM / DCS / PHS / 3G / 4G / 5G and Wi-Fi signals.

*With network jamming module, remote control all the jammers via computer in one blocking system.

1. network control, which can remotely monitor equipment voltage, current, power, equipment temperature and change working status;

• time switch machine, energy saving and environmental protection, extending equipment life cycle;
• the device displays voltage, current, power and equipment temperature in real time (optional);
• the internal motherboard integrates overvoltage and undervoltage protection functions. When the voltage reaches the upper and lower limits, the motherboard is powered off and alarmed.
• the internal motherboard integrates the temperature detection function. When the temperature reaches the upper limit, the motherboard is powered off and alarmed.
• the working time can be freely set by the user according to the actual use requirements in the blocking software.

*Built-in high gain directional antenna, easy hidden use, not easy to find out, and avoid affect surrounding signals.

*Low noise, good cooling system with 4 cooling fans inside the jammer, can support 24 hours continuously working.

*With triangle bracket holes, easy to place anywhere as you need.

3. Packing List

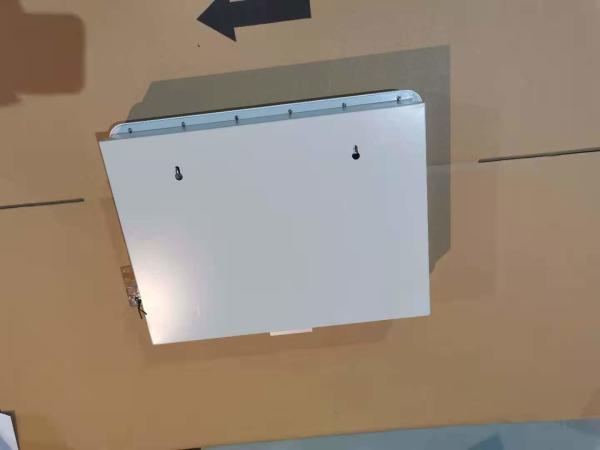

4. Product Photos

For more details, please contact Amy via amy@szeastlonge.com / alina1013@foxmail.com or whatsapp +86 134 1856 8064, thank you!
